Staged Workloads⚓︎

A staged workload is a discrete body of work, which takes data from a source, pushes it into a workflow executor for analysis, and then delivers the results of the analysis to an output location (also known as a sink).

Staged Workload Components⚓︎

Source⚓︎

The workload Source models the first stage of a processing pipeline. In a typical workload configuration, a Source can be used to read workflow inputs from a specified location or service in the cloud.

Executor⚓︎

The workload Executor models an intermediate stage of a processing pipeline. In a typical workload configuration, an Executor uses a supported service in the cloud to execute workflows.

Sink⚓︎

The workload Sink models the terminal stage of a processing pipeline. In a typical workload configuration, a Sink can be used to write workflow outputs to a desired location in the cloud.

Example Staged Workload⚓︎

The specific values below are from the COVID-19 Surveillance in Terra project. Workloads for other projects may leverage different implementations for source, executor or sink.

{
    "watchers": [
        ["slack", "C000XXX0XXX"],
        ["slack", "C000YYY0YYY", "#optional-channel-name-for-context"]
    ],
    "labels": [
        "hornet:test"
    ],
    "project": "wfl-dev/CDC_Viral_Sequencing",
    "source": {
        "name": "Terra DataRepo",
        "dataset": "4bb51d98-b4aa-4c72-b76a-1a96a2ee3057",
        "table": "flowcells",
        "snapshotReaders": [
            "workflow-launcher-dev@firecloud.org"
        ]
    },
    "executor": {
        "name": "Terra",
        "workspace": "wfl-dev/CDC_Viral_Sequencing",
        "methodConfiguration": "wfl-dev/sarscov2_illumina_full",
        "methodConfigurationVersion": 1,
        "fromSource": "importSnapshot"
    },
    "sink": {
        "name": "Terra Workspace",
        "workspace": "wfl-dev/CDC_Viral_Sequencing",
        "entityType": "flowcell",
        "identifier": "run_id",
        "fromOutputs": {
            "submission_xml" : "submission_xml",
            "assembled_ids" : "assembled_ids",
            "num_failed_assembly" : "num_failed_assembly",
            ...
        }
    }
}

Staged Workload Anatomy (High Level)⚓︎

Field Type Description
watchers List An optional list of Slack channels to notify
labels List A list of user-defined labels.They must be a string of the form "name":"value”, where name must start with a letter followed by any combination of digits, letters, spaces, underscores and hyphens and value is any non-blank string
project String The project is a non-null string required in the workload table. It's needed to support querying workloads by project
source Object The data source
executor Object The mechanism executing the analysis. (Most often this is Terra)
sink Object The location where data will be placed after analysis is complete

Slack Notifications for Watchers⚓︎

The optional watchers field in a workload request registers Slack channels as watchers of the workload.

"watchers": [
        ["slack", "C000XXX0XXX"],
        ["slack", "C000YYY0YYY", "#optional-channel-name-for-context"]
    ]

When specified, WFL expects a list of Slack channel IDs. You can also add the channel name as the watcher's third element, but because channel names can change this is for decoration and debugging assistance only and not accessed programmatically.

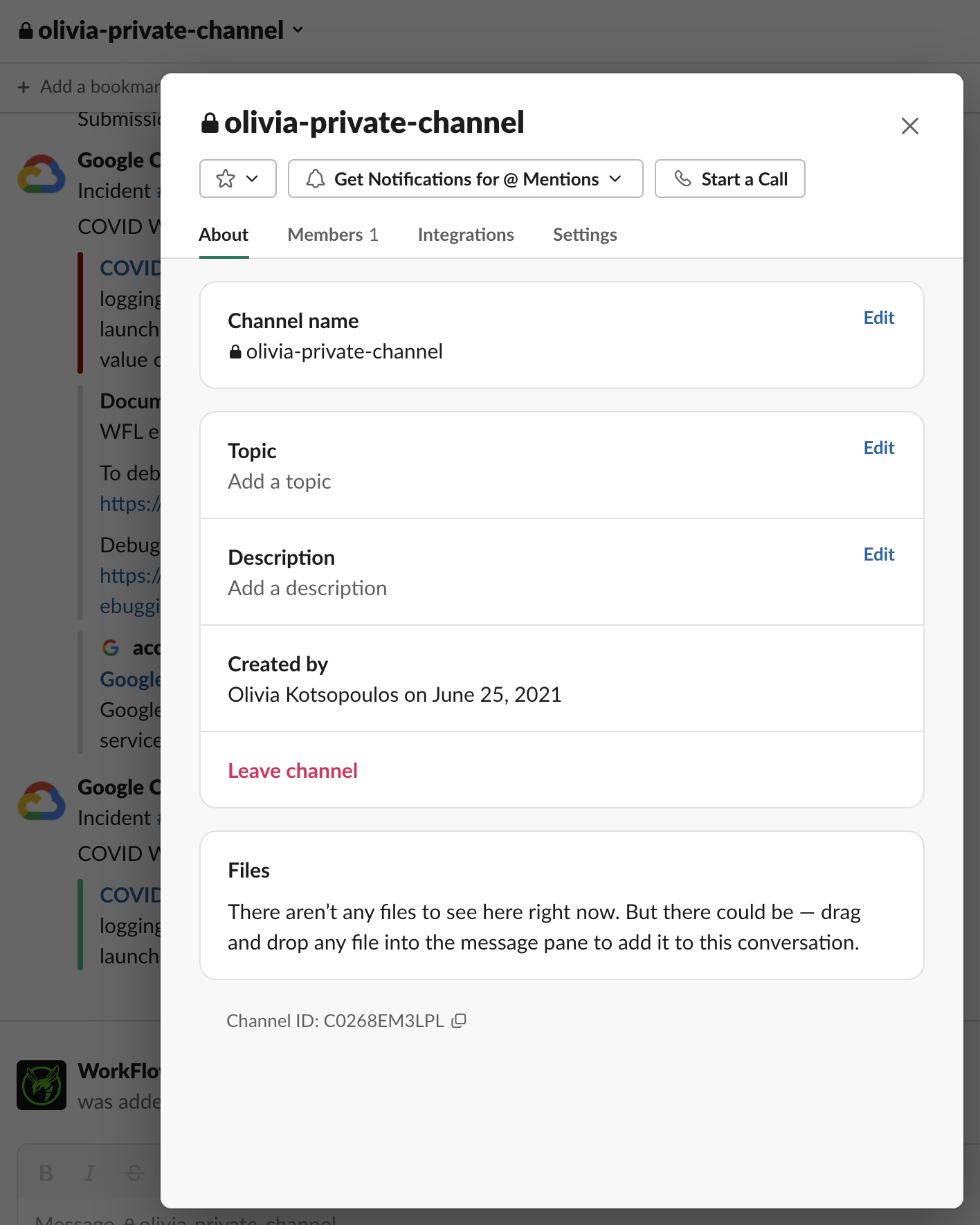

Slack channel IDs start with a C and can be found at the bottom of your channel's "Get channel details" dropdown:

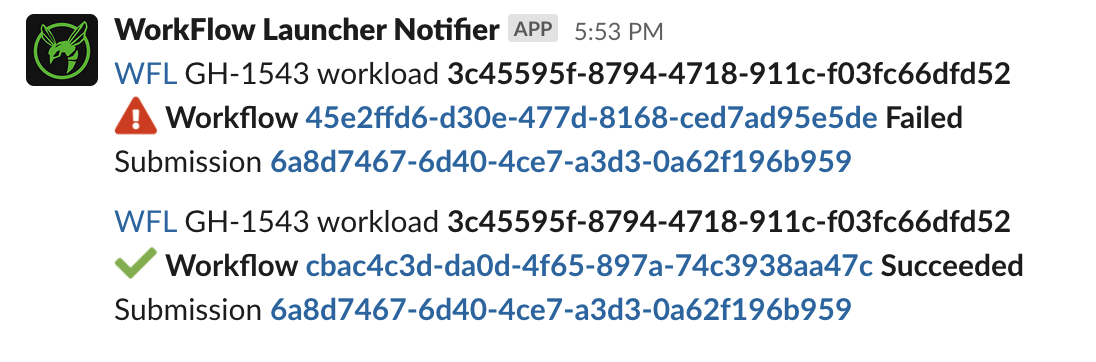

What notifications are emitted?⚓︎

User-facing exceptions - Ex. Issues accessing TDR dataset, snapshot, etc.

Notable state changes - Ex. Workflow has completed

In the future, WFL may allow for these two notification streams to be configured separately. High-volume use cases (ex. 100s of workflows/day) may find state change notifications too noisy.

Prerequisites⚓︎

  • Channel must live in the broadinstitute.slack.com Slack organization

  • The WFL notifier Slack App has been added to your channel -- /invite @WorkFlow Launcher Notifier

Stopping Notifications⚓︎

If notifications are too noisy, you can /remove @WorkFlow Launcher Notifier from your channel as a quick fix.

At this time, there isn't a way to update the watchers list for an existing workload.

The long-term approach is to stop your workload, recreate it with an updated watchers list, and start the new workload.
