Day 2, Exercise 3: Classification with CellProfiler Analyst

Day 2, Exercise 3: Classification with CellProfiler Analyst#

Lab authors: Beth Cimini, Carolina Wählby, Martin Simonsson, Megan Rokop, Mark Bray and Erin Weisbart.

Learning Objectives#

Run a completed CellProfiler pipeline to get measurements from images
Load measurements into CellProfiler Analyst and explore some of its features
Perform classical machine learning to build a classifier in CellProfiler Analyst (and if you have time, using deep learning in Piximi)

Preparation#

Prior to this exercise, you should have downloaded CellProfiler Analyst and the Translocation image set.

This exercise builds on what you have learned in the Beginning Segmentation and Advanced Segmentation sections of the course. You should by now be familiar with basic use of CellProfiler, principles of pipeline building, and have some experience troubleshooting difficult segmentation tasks.

Background information#

Experimental overview#

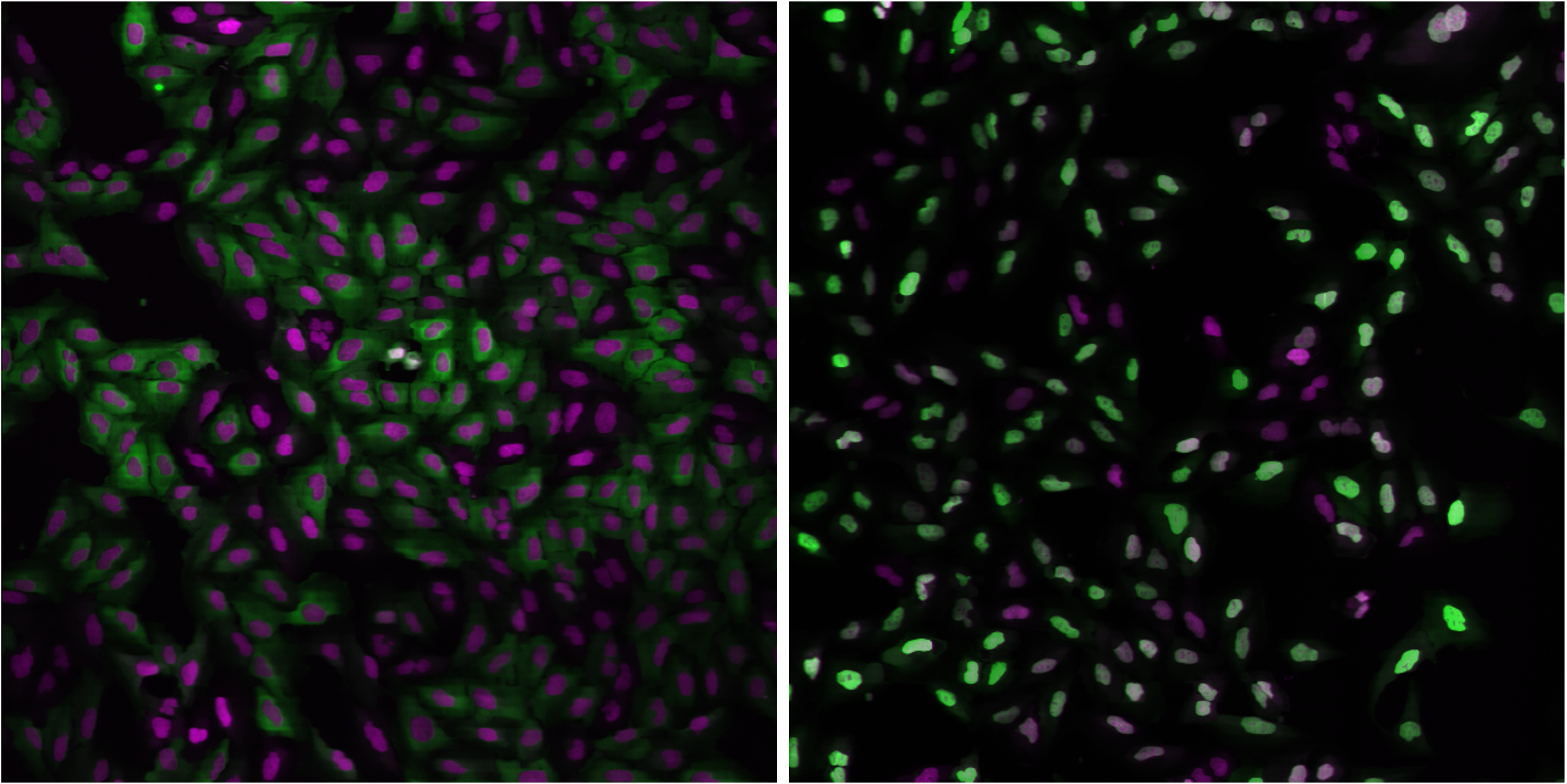

In this experiment, we are working with human U2OS osteosarcoma (bone cancer) cells, in which a Forkhead-protein FOXO1A has been labeled with GFP (Green Fluorescent Protein). In proliferating cells, FOXO1A is localized in the cytoplasm; it is constantly moving into the nucleus, but is transported out again by export proteins. Upon inhibition of nuclear export, FOXO1A accumulates in the nucleus. We know that 150nM of Wortmannin (the drug we are using as a positive control in this experiment) inhibits transport of the FOXO1A protein from the nucleus back out to the cytoplasm (Fig. 1). Labeling FOXO1A with GFP allows us to visualize its subcellular localization. In this exercise, we wanted to characterize our positive control by determining the lowest possible dose of Wortmannin necessary to observe the nuclear accumulation of FOXO1A. The big-picture goal of developing image-based screens of this type is to aid in the search for unknown drugs that have the same effect as Wortmannin on FOXO1A subcellular localization (and hence may be possible treatments for osteosarcoma patients), but possess fewer side effects than the known drugs.

Images#

The images you will be analyzing were taken from an actual experimental dataset. Cells were grown in a standard 96-well plate, but for this exercise you will work with a subset of only 26 of these images.

8 wells were untreated (and therefore are negative controls)
8 wells were treated with the maximum dose of the drug Wortmannin (and therefore are positive controls)
10 wells were used to create a dose gradient with increasing concentrations of Wortmannin

In addition to these images, a text file with metadata called Translocation_doses_and_controls.csv is provided, containing information about where on the 96-well plate the wells were located, and how the cells were treated.

Exercise Overview#

In this exercise, you will use CellProfiler to load a provided pipeline and run through the pipeline in test mode so you can see what is happening in the pipeline. You will then run the pipeline on all the images in the experiment, collect measurements from each cell, and store them in a database. At this point, you will use CellProfiler Analyst to visualize your data, and use its machine learning tool to train a classifier to distinguish between treated and untreated cells. You will use this classifier to answer the question of what is the lowest possible dose of Wortmannin that causes a FOXO1A localization phenotype.

Exercise I: Using CellProfiler to identify features and obtain measurements from cellular images#

1. Start CellProfiler and configure the input data for analysis#

Start CellProfiler by double-clicking the desktop icon
Load the Translocation_final.cppipe pipeline by dragging and dropping it into the pipeline panel or by File > Import > Pipeline from file. If you’d rather use your pipeline from last exercise, you can do that too!
Load the images into the pipeline. From File Explorer (Windows) or Finder (Mac), drag and drop the TranslocationData folder into this panel. Double-click on BBBC013_A01_s1_w1.tif and BBBC013_A12_s1_w1.tif to see what examples of negative and positive GFP controls look like, respectively.
Scroll to the bottom of the File list and note that in addition to the image files, there is a file called Translocation_doses_and_controls.csv. We only want image files to be analyzed in CellProfiler so we need to tell CellProfiler to ignore this file. Below the file list, select Images only from the Filter Images dropdown menu. Click on the button to filter out non-image files. You will see that the CSV file is then grayed-out in the list, indicating that it will not be read in as an image file.
Click on the Metadata module, which is the second module in the Input module panel. The pipeline already has the Metadata module configured to use Regular Expressions (RegEx) to extract metadata from the image file names.
You need to tell CellProfiler how to find the additional metadata in the Translocation_doses_and_controls.csv file. (CellProfiler is looking in the Default Input Folder which is probably not where the file is.) Click the file selection box next to “Metadata file name” line and navigate to the location of the TranslocationData folder on your computer, then select the Translocation_doses_and_controls.csv file within. Press Update. You should now see images and metadata populating the Metadata window.
If you examine the metadata matching, you can see that Well is selected from both drop-downs under CSV Metadata and Image Metadata. This indicates that the information stored in the .csv’s Well column should be matched to the Well metadata values obtained from the filename in the first extraction step.
Next to the setting labeled Metadata data type, make sure Choose for each is selected from the drop-down. For the Dose metadata, select Float as the data type. (This tells CellProfiler to treat it as a number and is necessary for CellProfiler Analyst to handle the data correctly later.) Leave the remaining metadata at the default Text values.
Click on the NamesAndTypes module. Note how the images are assigned to channels: images containing “w1” in their file name are assigned to the name “rawGFP”, while those with “w2” are assigned “rawDNA”. Click the Update button below the divider to display a table that shows each channel pair matched up for the 26 wells in the assay.

2. Walk (very quickly!) through the CellProfiler pipeline#

Click the button to the bottom-left of the CellProfiler interface. You will see icons appear next to the modules in the pipeline, as well as new buttons appear below the modules.
Click on the button below the pipeline panel, in order to progress through each module in the pipeline, one by one. We have tuned this pipeline for you so that it will work well with the images provided, but any time you run a new pipeline and/or a new set of imagees you should step through the pipeline to make sure it is doing what you expect it to do!

Because we know something about the biology we are trying to capture, we have designed the pipeline to extract specific measurements that we think will help us understand the effect of the drug treatment on FOXO1A-GFP localization. Intensity metrics tell us where the FOXO1A-GFP fluorescence is in the cell. Colocalization metrics are another way of exploring localization; if the FOXO1A-GFP protein is not translocated, the intensity correlation between FOXO1A-GFP and DNA signals in then nucleus would be expected to be negative, whereas upon translocation, the correlation would be positive. Finally, we will calculate a ratio of GFP intensity in the nucleus to GFP intensity in the cytoplasm, which should increase upon translocation of FOXO1A-GFP to the nucleus.

IdentifyPrimaryObjects: Identifies the nuclei in the DNA channel
IdentifySecondaryObjects: Defines the cell body as a region 10 pixels larger than the nucleus. We did this because not all cells have strong GFP signal, so we cannot rely on intensity-based methods to define the cell boundary. (We used Distance - N method in IdentifySecondaryObjects module which doesn’t actually consider the input image so we could have used ExpandOrShrinkObjects module instead.)
IdentifyTertiaryObjects: Defines the cytoplasm as the region between the nucleus and the cell body.
MeasureObjectIntensity: Measures the intensity of GFP in the nucleus and cytoplasm. (Remember the Test Mode display window shows a summary of the measurements collected in the image but under the hood single cell measurements are being collected and will be saved out at the end.)
MeasureColocalization: Measures correlation metrics for GFP and DNA intensities within the nucleus and cytoplasm.
CalculateMath: Calculates the ratio of mean GFP intensity in the nucleus to mean GFP intensity in the cytoplasm and creates a new feature called IntensityRatio.
GrayToColor: Creates a color image for visualization purposes.
OverlayOutlines: Overlays the outlines of the nuclei and cell bodies on the color image for visualization purposes.
SaveImages: Saves the overlay image created in the previous step. These can be helpful to return to after running a pipeline to verify that segmentation was successful. (You can deselect this module if you do not wish to save these images.)
ExportToDatabase: Saves all the measurements collected to a database for later analysis in CellProfiler Analyst.

3. Run the CellProfiler pipeline#

Exit Test Mode by clicking the Exit Test Mode button at the bottom-left of the CellProfiler interface.
Click the Output settings button and set your Default Output Folder to a folder that is findable on your computer (e.g. your Desktop).
Select Windows in the menu bar and select Hide all windows on run. Because the pipeline is optimized, we no longer need to see the results. Additionally, the analysis will be quicker this way, since CellProfiler does not have to take the time to create and draw each window.
Save your pipeline by selecting File > Save Project As…, give the pipeline a name and save it to your Desktop.
Click Analyze Images. The pipeline will run on all 26 images. This full run may take a few minutes.

Exercise II: Using CellProfiler Analyst to visualize the data and classify the cells exposed to each drug condition by their phenotype (FOXO1A-GFP subcellular localization)#

1. Start CellProfiler Analyst and load the measurement database#

Start CellProfiler Analyst by double-clicking the icon on the desktop .
When CPA is started, it will ask to select a properties file. Select the properties file named DefaultDB.properties, located in CellProfiler’s Default Output Folder. The properties file was created by the ExportToDatabase module in your CellProfiler pipeline. This file is a text file that contains the settings necessary for CPA to connect to the database that CellProfiler generated. (It contains the measurement data obtained from all 26 images, and pointers to the location of those images on your hard drive. If you move the database file, you’ll need to edit the properties file to point to the new database location.)

2. Visualize the measurements in a 96-well plate layout view#

CPA has several tools available for displaying data for exploration. If your data came from a multi-well plate, such as the 96-well plate for this particular translocation assay, then one of the most useful data visualization tools available is the plate layout format.

Click on the Plate Viewer icon in the main CPA window (, 3rd from the left). This selection brings up a 96-well formatted display of the plate from which your images originated. The colored squares represent wells for which measurement data is present; crossed-out wells indicate wells with no measurements. Notice that 26 out of the 96 wells have data associated with them. Mouse over a few of the wells to see a tool-tip box appear, which states the actual per-well value.
The initial color coding represents the image index, a bookkeeping measurement which is not relevant for the analysis that we are doing in this exercise. Under the Measurements drop-down list, choose Image_Metadata_Dose from the list, in order to visualize the drug concentrations added to each well. You should see:
- Column 1, rows A-D, column 12, rows E-H and well E02: Negative controls, i.e. no drug added
- Column 1, rows E-H and column 12, rows A-D: Positive controls, i.e. 150 nM Wortmannin
- Row E, columns 2-11: Nine doses of 2-fold dilutions of Wortmannin, increasing from left to right

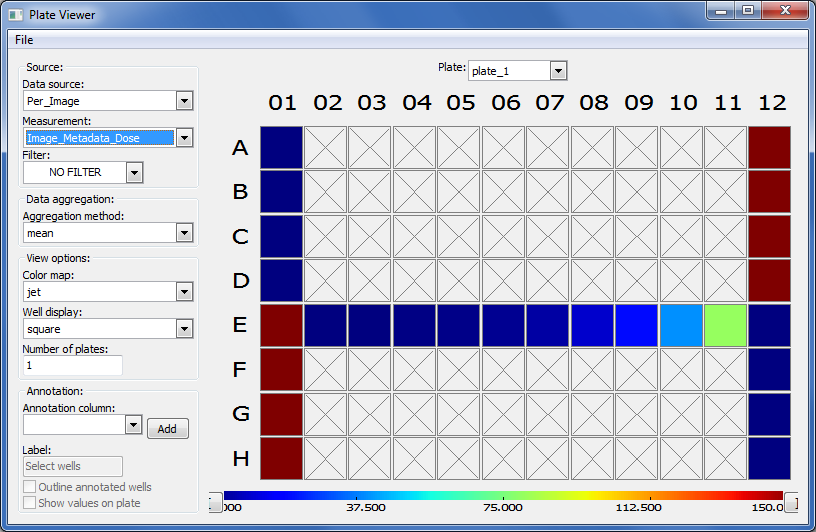

../_images/Fig62.png — Fig. 30 *Figure 6: The Plate Viewer visualization tool illustrating the drug dosages applied to the plate.*#

Select Image_Count_Nuclei from the Measurement drop-down to show the nuclei count for each image.
Per-object measurements can also be displayed using this tool. Select Per-object as the Data Source, and Cytoplasm_Math_IntensityRatio as the Measurement. Since each well can display only one value, but there are multiple objects per well, the Plate Viewer displays an aggregate statistic of the per-object measurements for each well. (Note that you can change the statistic used, at this step, by selecting it from the Aggregation method drop-down in the Data aggregation panel.)
Image thumbnails can also be shown in the viewer. To do this, under Well display in the View options panel, select thumbnail. The colored well squares will be replaced with merged color thumbnails of the original images.
In order to see that the original images are linked to the well display, you should right-click on a well and select the image number corresponding to the image of interest, in order to display the full image. (Note that the default color for each channel can be changed by selecting the desired colors in the menu bar; any changes will be applied to subsequent images that you open.)
Lastly, view the thumbnail montages by right-clicking on a well and selecting Show thumbnail montage from the resulting pop-up. Move the thumbnail by dragging the bar on top of the image. Click on the thumbnail image to dismiss it from view. (Note that, if there had been multiple snapshots of multiple fields of view for each well in the plate, then the montage would be shown as a tiled display.)
Do not close the Plate Viewer tool, as you will be referring to it later in the exercise.

2. Using the Classifier function of CPA to distinguish the cells` FOXO1A-GFP subcellular localization phenotypes#

CellProfiler Analyst contains a machine-learning classification tool, which will allow you to distinguish different phenotypes automatically. In this case, we will train the classifier to recognize cells in which FOXO1A-GFP is located exclusively in the nucleus (positives) versus outside the nucleus (negatives) by sorting examples of each into bins.

Select the Classifier icon in the main CPA window (, 2nd on left). The Classifier interface will appear, similar to that shown in the top of Fig. 7.
Click on the Fetch! button, which instructs CPA to display pictures of a specified number (e.g. 20) of randomly selected cells from this experiment. You will see the middle unclassified panel start to be populated with thumbnail images of these randomly selected cells. Because the cell images that are provided to you are a random sampling of the data this portion of the exercise will not look exactly the same from user to user.
Use your mouse to drag & drop whichever cells you consider clearly positive (i.e. FOXO1A-GFP located exclusively in the nucleus) into the positive bin. See the bottom-left panel of Fig. 7 for examples of positive cells. A small dot is displayed in the center of each thumbnail image as your mouse hovers over it. The cell that falls under this dot is the cell to drag & drop which will be used for classification. You can also select cells in the unclassified bin using the arrow keys and assign them to bins with the number keys. e.g. Pressing ‘1’ would send any selected cells to the first bin (‘positive’ here).

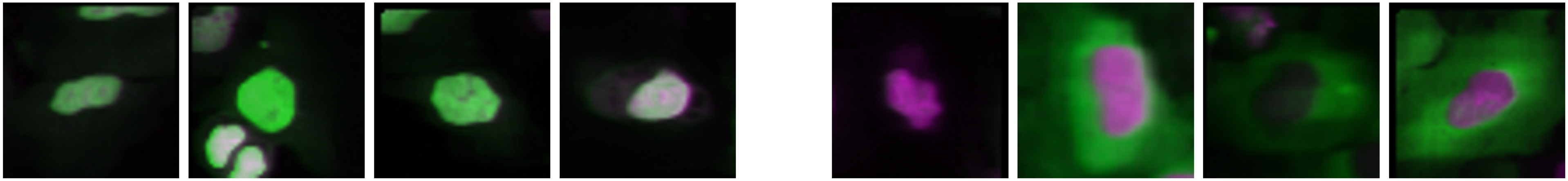

../_images/Fig7b.png — Fig. 31 **Examples of positive cells** **Examples of negative cells**#

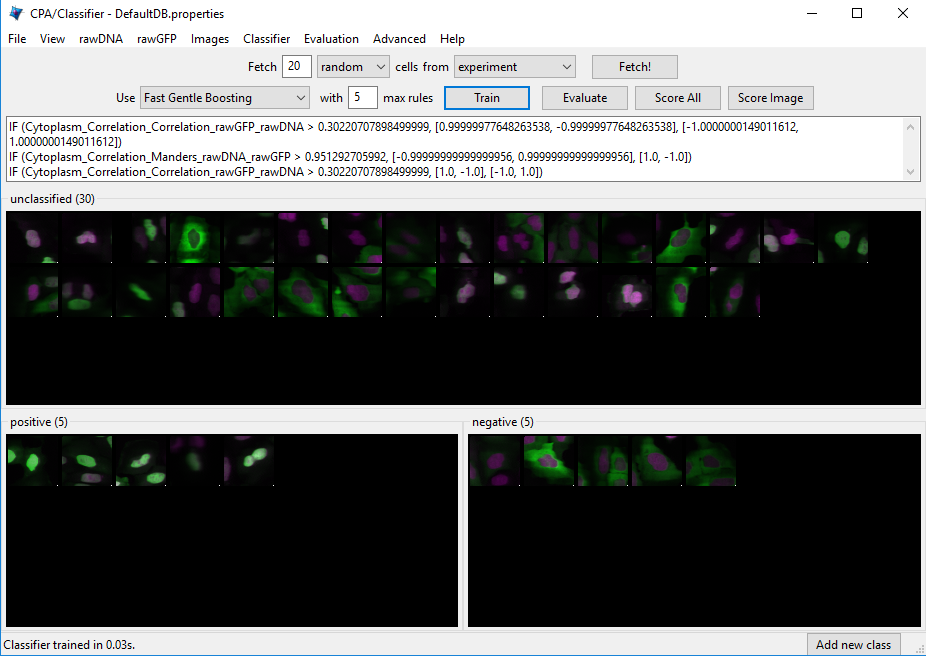

Figure 7: **Top:** The Classifier interface showing 5 positive and 5 negative cells. Thirty unclassified cells remain and are ready for sorting. **Bottom:** *Examples of positive cells (left) and negative cells (right).

Now drag & drop whichever cells you consider clearly negative (i.e. FOXO1A-GFP located exclusively in the cytoplasm) into the negative bin. See the bottom-right panel of Fig. 7 for examples of negative cells.
Once you have at least 5 cells in the positive bin and 5 cells in the negative bin, change the classifier from Random Forest to Fast Gentle Boosting and click the Train Classifier button. If you did not receive 5 clearly positive & 5 clearly negative cells, in the first batch of 20 randomly selected cells you received, then hit the Fetch! button again, until you receive enough cells to be able to put 5 in each bin. This set of positive and negative cells you have assembled is the training set.

3. Reviewing the rules that CPA established (based on your training set) to classify positive and negative cells#

The classification rules you will examine below are CPA’s way of defining the measurements (and the cutoff values the measurements need to have) in order to distinguish the positive from the negative phenotypes.

Read the text that is now located in the text box in the upper half of the Classifier window. This text contains the rules CPA found based on the training set you provided to it. (Note that rule displays aren’t available with all classifier types.)
- Each rule is in the form an IF statement evaluating whether a measurement is greater than some value.
- The closer to the top of the list a measurement appears, the more significant it is in distinguishing the phenotypes.
Questions to consider:
(1) What is the top-most measurement that shows up in your classification rules?
(2) Is the top-most measurement one that you would expect to be the most significant one to use in distinguishing the phenotypes?\

4. Reviewing the accuracy of the classification with the confusion matrix#

Confusion matrix visualization is currently broken in CPA, but if it was working, this would be a great time visualize how confident CPA is in its categorization by examining a confusion matrix.

5. Refining the training set by sorting more `unclassified` cells into the `positive` and `negative` bins#

At this point, it is important to keep in mind that the CPA Classifier tool will pick whichever measurement is most significant in making its determination of positive versus negative (whether or not that measurement is biologically relevant). For example, at this point (after only sorting 5 positive & 5 negative cells), you may notice measurements called Object_Number (the object number of each cell) or Nuclei_Location_Center (the cell position in the image) included in the classification rules. This indicates that the classifier is not well-trained, since these measurements are not actually correlated with the phenotype we want to find. Whenever you find that the classifier is not well-trained, you need to either add more cells to the training set, or obtain more measurements from the cells (in CellProfiler).

Obtaining samples from positive and negative control wells: Sometimes the phenotype of interest is uncommon enough, that fetching 20 random images will not result in the retrieval of many clear examples of the phenotype you are looking for. However, if you know which images contain examples of the phenotype, you can open the image - either by double-clicking a cell thumbnail, or from the Plate Viewer (if you know the location of the well). You can then drag-and-drop the cells of interest directly from the image.

Open the Plate Viewer and double-click on well A01, in order to open an image from the negative controls.
Click on a cell in the image that is negative for the phenotype and drag-and-drop it into the negative bin. Repeat this for 5 negative cells.
Repeat the above two steps for A12 (a well containing a positive control sample), dropping the cells into the positive bin. Do this for 5 positive cells.
Click the Train classifier button.

Correcting misclassified cells in an image: You may also apply the rules to all the identified cells in an image, and use it to correct misclassifications.

Double-click any of cell thumbnails in the positive or negative bins.
From the image that opens, click Classify from the menu, then Classify Image. The cells will be color-coded according to their classification based on the current rule.
Click the Show controls >> button at the bottom to reveal the total counts of each class on the image. On Windows computers this will also show which color corresponds to which class. On Macs, select View from the image menu, and then select View cell classes as numbers. Then, to see what each number means, click the Show controls >> button at the bottom to reveal the numbered class list.
Look for up to 5 cells that are clearly misclassified. For each of these cells that you find, click on it and drag-and-drop it into theappropriate bin.
Click the Train classifier button.

Fetching positive and negative cells: You now have your initial training set, and the rules that define the computers first attempt at distinguishing the phenotype. Therefore you can now request that the computer fetch more examples of positive and negative cells. These new sample cells can be added to the corresponding bins, in order to improve the classifiers performance.

Change the number next to the word Fetch from 20 to 5. Click on the drop-down box labeled random in the fetch controls. Select positive from the drop-down list.
Click the Fetch! button to retrieve samples of what the computer thinks are positive cells based on the current set of rules. If the cells are correctly fetched (true positives), drag and drop them into the positive bin. If negative cells are incorrectly fetched (false positives), drag and drop them into the negative bin. As with previous steps, if you are not sure about which bin a cell belongs to, do not add it to the training set. Instead, click to select these ambiguous cells, and then press the Delete key to remove them from the training.
Repeat this step until you have at least 20 cells in each bin.

Exploring the retraining:

Click the Train classifier button
Questions to consider:
(1) What is the top-most rule that shows up in your classification rules?
(2) Is the top-most rule a measurement that you would expect to be the most significant one to use, in distinguishing the phenotypes?

Whatever approach you choose to obtain more positive and negative cells, the procedure is the same: (i) Find rules; (ii) Obtain more cell samples of the desired phenotype; (iii) Correct misclassifications, or sort into appropriate bins; (iv) Go back to the first step and repeat, until the classifier displays the desired level of accuracy.

6. Classifying all cells in the experiment#

Once the classifier is of the desired accuracy, it is ready to be applied to the complete image data set.

Press the Score all button. A dialog box will appear with scoring options; click OK to accept the default settings and begin scoring. Every cell in every image will now be scored as positive or negative by the classifier you built. A Hit table window will appear containing the summarized scores for every image (Fig. 9). The total cell count is reported, as well as the number of positive and negative cells classified. The last column is the enrichment score.
Click on the column header labeled Enriched Score positive. (You can resize the hit table window, if this column is not visible). Clicking this header will sort the rows in ascending or descending order, according to the enrichment scores. Sort the column values so the order is descending, with the highest score at top.
Double-click on the asterisk in the first row to the left of the first column (ImageNumber) to display the corresponding image for the top-scoring well.

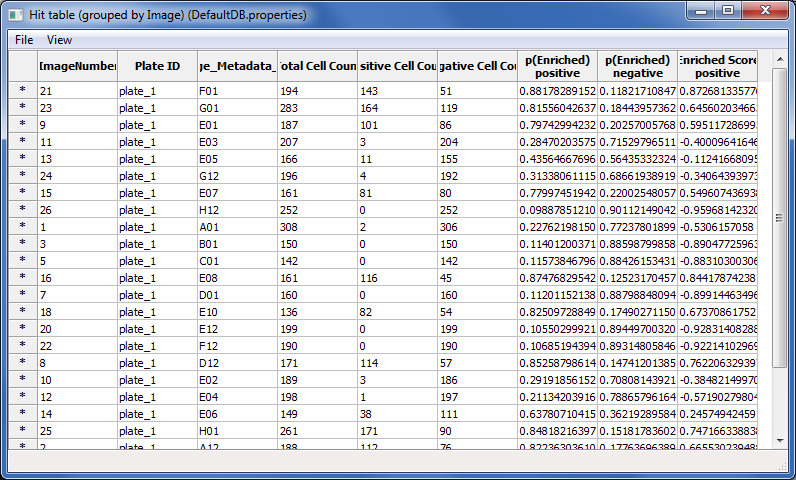

../_images/Fig92.png — Fig. 32 *Figure 9: Hit table showing the cell counts and enrichment scores.*#

You can also save your training set and/or classifer model for future reference or to make changes later. Do so by going to File > Save Training Set or File > Save Classifier Model.

7. Saving the scores to the measurement database for visualization#

Now that we have successfully scored our experiment, we will save the scores back to the measurement database, so that they can be visualized using CPA`s tools.

Select the Hit table window and click File from the menu, then Save table to database. When prompted for a name, enter HitTable. Select save permanently when prompted.
Select Plate Viewer from the CPA interface, then choose OTHER TABLE from Data source.
When prompted to select a table, choose HitTable.
At the next prompt, select per-well as the table type. Then select the matching columns in order to link the table of hits to the table of image measurements, by doing the following:
- On the first row, choose PlateID on the left to match Image_Metadata_Plate on the right.
- On the second row, choose Image_Metadata_Well on the left to match Image_Metadata_Well on the right.
Open a new Plate Viewer tool from the main CPA window. On the Plate Viewer, select Enriched_positive from the Measurement drop-down list in order to view the enrichment scores in the plate layout.
Refer to the previous Plate Viewer display of Image_Metadata_Dose from section 2A. Consider the following questions:
(1) How well does the layout of the Enriched_positive values match the layout of the (i) positive and negative control wells and (ii) the 9-point dose wells of Image_Metadata_Dose?
(2) What does the amount of correspondence tell you about the classifier you trained?

8. Plotting the scoring results to estimate the lowest dose necessary to induce FOX1O-GFP translocation#

You can use additional data tools in CPA to visualize your data in other ways. In this case, we will use a scatter plot to plot a dose-response curve. This will allow us to see how the ratio of positive cells (i.e. cells with GFP in the nucleus) increases with Wortmannin dose.

Click the Scatter Plot icon in the main CPA window (4th from left).
From the x-axis row, select Per_image and Image_Metadata_Dose from the drop-down lists. Choose log from the Scale drop-down.
From the y-axis row, select HitTable and Enriched_positive from the drop-down-lists.
Click the Update chart button to see the scatter plot. NOTE: due to a bug in CPA, if you have plotted the graph once in linear scale mode and then try to switch to log scale an error will be thrown. If you want to look at both, open two separate scatter plots.
What is the enrichment score (Enriched_positive) that corresponds to the highest dose (Image_Metadata_Dose) in the experiment? (There are several points corresponding to the highest dose, so estimate the average enrichment score.) What is the lowest dose that produces an enrichment score similar to that of the maximum dose?

9. Exporting your classifier for use in a CellProfiler pipeline#

Head back to the Classifier tool. Export a .model file which stores the trained classifier for use in other software with File -> Save Classifier Model.

Within CellProfiler 4+, the ClassifyObjects and FilterObjects modules can load these model files and use them to assign objects to classes during the pipeline itself. This allows you to classify new data sets without needing to train in CellProfiler Analyst again. (Note that to use model files in CellProfiler, the pipeline needs to produce the same measurements that were present in your CPA database during training. These measurements must be captured before the module which will use your model.)

Bonus Exercise: Using Piximi for classification (optional)#

There is never a single way to do image analysis and choosing the “best” way can be influenced by how accessible the software is to you and how familiar you are with the software. So on that note, we’re going to perform the same classification task that we just did using CellProfiler and CellProfiler Analyst and instead use Piximi this time.

Note

Sometimes this data set takes a long time to load, sometimes it doesn’t! We’re not sure why.

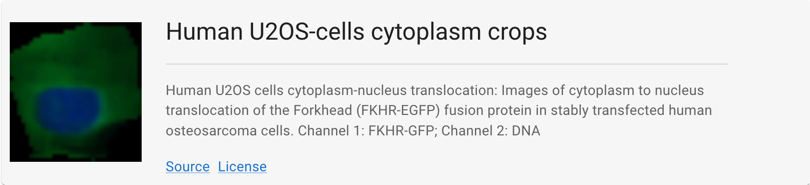

Open Piximi, and then load the U2OS-cells cytoplasm crops example dataset (Open > Project > Example Project > Human U2OS-cells cytoplasm crops)

Optional: fix how the images look#

You need not do this, since it can be a bit slow, but it is necessary if you want to assess the performance of the no-GFP class (and will make things much easier if you are red-green colorblind).

Piximi’s current defaults are to load two-channel images as red and green, and to rescale each image min-max individually. While we work to fix those bugs, here’s how you can manually set the colors to something better (and more uniform):

Hit Ctrl+A to select all cells or use the “Select all” button in the top bar

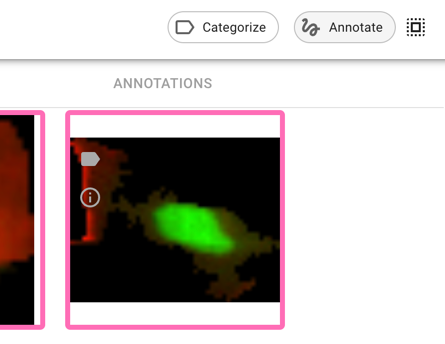

Hit “Annotate” to open the annotation viewer

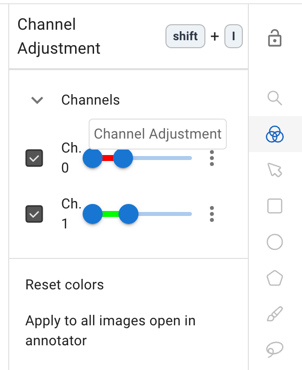

Open the channel adjustment bar on the top right (), and change color mapping to better lookup tables and values. Hit “Apply to all images open in the annotator” when you’re done (and then wait a couple of minutes)

Train a Classifier#

Return to the image viewer by selecting the arrow in the upper left corner. Select Yes to save the changes to your annotations.
Some of the cells have already been labeled which you can see by looking at the Categories on the left sidebar. The flags that are visible on the upper left of each image correspond to the category it has been annotated to. Note that you can change the color of a flag by clicking on the the three dots next to its name and selecting Edit.
Tell Piximi you want to fit a classifier for these images by selecting the 3 dots in the left side bar. Go ahead and use the pre-populated defaults and select to train.

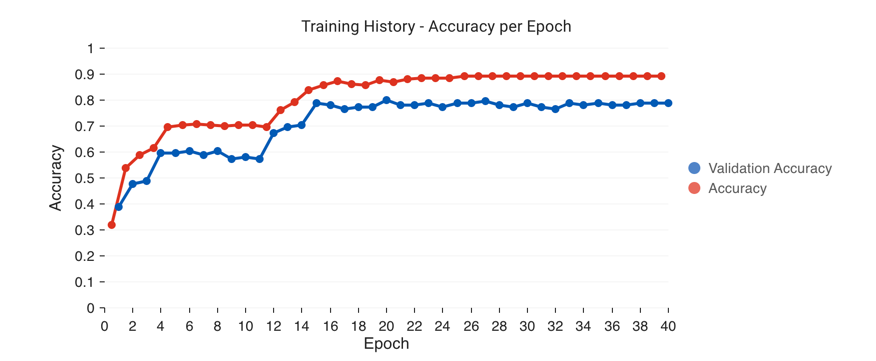

After an initialization step, you will see a performance chart that looks like the one below, as well as a loss graph. You can keep hitting Fit Classifier to keep adding more epochs of training.

Evaluate your classifier#

Once you’re satisfied with your training (either because it’s great or because you’re satisfied that it has plateaued), close the training dialog. Hit the Evaluate Model button to check your confusion matrix. A confusion matrix helps you figure out patterns of mistakes, but it can only tell you about the performance of your model on data for which you’ve already provided the answer - it can’t tell you about performance in your unlabeled data. It is critical then to always apply your classifier to new, unseen data to see how it performs especially when only a small fraction of your data is labeled which is typically the case for biological cases (after all, if you have to hand label almost all of your data, then what’s the point of training a model?).
Hit the Predict Model button to apply the model to the unlabeled data

Evaluate the performance of the predictions by looking at the newly predicted images. Use the filter/sort button on the right sidebar to filter to certain categories. You may want to filter to just “Inference” to look at just the new predictions.

Fix some mistakes#

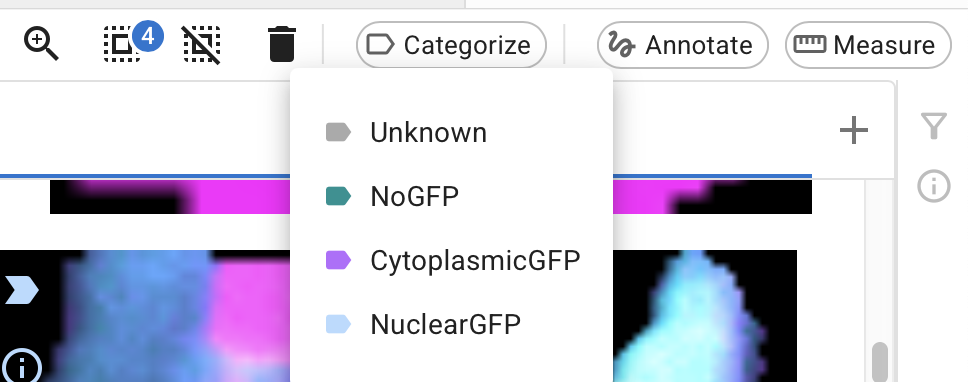

When you find some errors in the predictions, you can fix them by assigning them a new category. Select the images and select “Categorize” from the top bar.

Depending on why you’re using machine learning, you might choose to fix all the wrong images at this stage, or only some:

Is your goal to just get the classifications right and then use them for something else, and most of them have already been correctly classified?
- In that case, there’s no harm in just fixing the few mistakes and then moving on to other downstream quantification steps.
- If this is your goal but there are a lot of mistakes, you might not choose to fix all of them at this stage, but just fix a subset and then try to train again so you can get to a point where the errors are at a small enough level that you CAN do final data cleaning by hand
Is your goal to create a robust, reusable classifier to use on other sets or in other contexts?
- In that case, you might want to fix only a subset of the mistakes before retraining, so you can get a sense of if your model performance is improving.
- If retraining, once you’ve done your chosen recategorizations, use filters to delete “Inference” categorizations and then hit “Fit Model” again.
- If this is indeed your goal, you need to have some unseen test data somewhere else that you are not tuning on here! Once you’ve run any version of your model, at any stage, on unseen data, that data is now “seen data”, and can’t be used as a test set anymore. How you plan your data splits (and how much, and which, data you keep locked away as test set(s)) is critical to any kind of machine learning research.

Save things for later#

Reproducible science matters! You can therefore save your Piximi project file for later, as well as save your model for later use. You might find the former handy if you want to add more data later, and/or you just want to confer with someone else (including a paper reviewer, or future you) about how difficult data points were handled.
